Ultralight Xray Curtains

Regular price $ 1,145.00

Ultralight X-Ray Curtains

Ultralight Xray Curtains provide radiation shielding equivalent to lead. The lead is replaced with non-toxic metals which block radiation. By using a combination of heavy metals, we created a very light weight x-ray curtains with 25% lower weight than traditional x-ray curtains.  These curtains are available in 0.125mm Pb(free) and 0.25mm Pb(free) protection levels.

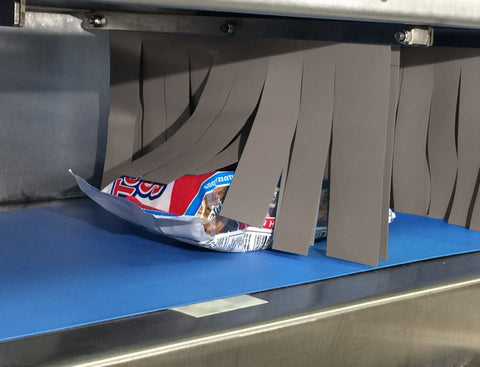

A UHMW film is applied to one side to increase x-ray curtain durability in high wear applications.  This lead-free curtain is perfect for x-ray systems inspecting lightweight pouches, cartons, or cups where other lead free curtains may cause the product to catch or stack up on the conveyor belt. Our Ultralight Xray Curtains are unique and you will not find another curtain like this on the market!

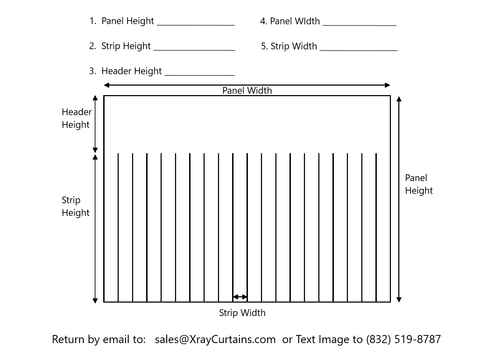

Custom Cut Curtains can be provided to match the requirements of any xray system by either filling out an online form or emailing our curtain template to

***Download our curtain template for a custom quote today***

Material is environmentally friendly. No toxic ingredients. No disposal restrictions.

Ultralight X-Ray Curtain Features

  • 0.125mm and 0.25mm lead equivalent protection level.
  • Duplex custom cut curtain sets available.
  • Precut curtain sets have a standard curtain strip width of 25mm.
  • Custom cut xray curtains are available for any model of xray system.

Please contact us for details on custom curtain sets or large quantity orders by calling +1 (832) 519-8787 or by email at

Product Details for Ultralight Xray Curtains

  • Durable Abrasion Resistant Film on Product Contact Side
  • Lightweight Lead Free Rubber Core Composite Shielding
  • ROHS & REACH Compliant

Physical Properties of Ultralight Xray Curtains

Composition Filled Rubber Matrix with UHMW-PE Laminate
Color Black Front / Brown Back
Lead equivalence (min.) 0.125 mm (Lead-Free) 0.25 mm (Lead-Free)
Thickness (+/- 10%) 0.69 mm 1.0 mm
Weight 0.37 lbs/ft2 0.74 lbs/ft2
Hardness 60 +/- 5 Shore A 60 +/- 5 Shore A
Tensile strength (min.) 4 MPa 4 MPa
Elongation at Break 115%


*Certified according to DIN 61331-1 (50 kV - 110 kV)


Download 0.125mm LE Technical Data Sheet Ultralight UHMW Faced Curtain

Download 0.25mm LE Technical Data Sheet Ultralight UHMW Faced Curtain


The Ultralight Xray Curtains are NOT recommended for the aggressive applications listed below.  For these applications we suggest our Low Friction, High Strength Xyflex.

  • High Speed Jar lines
  • Large Metal Foil Packages
  • Washdown Applications
